Preheating systems for aluminum casting operations — specifically launder and ladle heating equipment — are critical to preventing thermal shock, minimizing hydrogen porosity, and maintaining melt integrity during metal transfer. Based on our direct experience working with aluminum foundries across North America and Europe, the optimal preheat temperature range for aluminum launders sits between 150°C and 400°C (302°F to 752°F), while ladle preheating typically requires 200°C to 500°C (392°F to 932°F) depending on alloy composition, ladle geometry, and refractory lining type. Skipping or inadequately performing this step leads to catastrophic melt loss, dangerous steam explosions, and measurable quality defects in the final casting.
What Is a Preheating System for Aluminum and Why Does It Matter?
In aluminum casting, any equipment that contacts molten metal must reach a minimum safe temperature before the pour begins. A preheating system applies controlled heat to launders (metal transfer channels), ladles (pouring vessels), and related tooling to eliminate residual moisture and bring the refractory lining to operational temperature.
When molten aluminum — typically poured at temperatures between 660°C and 760°C (1220°F to 1400°F) — contacts a cold or wet refractory surface, the result is rapid steam generation. This steam cannot escape fast enough through the refractory matrix, causing violent pressure buildup. The outcome ranges from metal splatter and contamination to explosive failure of the ladle or launder structure.
We have seen firsthand how foundries that neglect systematic preheating protocols face recurring porosity defects, shortened refractory service life, and unacceptable scrap rates. Proper preheating is not optional — it is a fundamental metallurgical and safety requirement.
Key Functions of Aluminum Preheating Systems
- Moisture elimination from refractory linings.
- Thermal conditioning of launder and ladle walls.
- Prevention of hydrogen absorption in the melt.
- Reduction of thermal cycling fatigue in refractory materials.
- Stabilization of metal temperature during transfer.

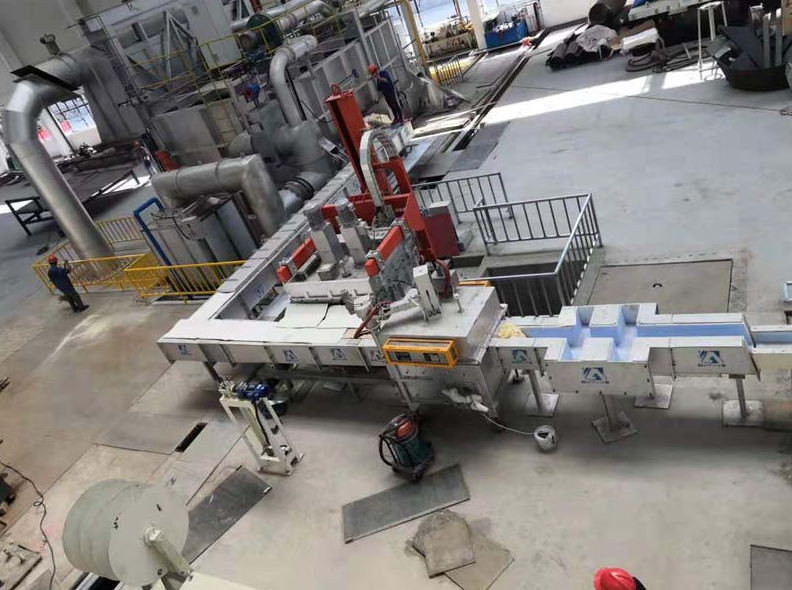

How Do Launder Heating Systems Work in Aluminum Casting?
Launders are open-channel or closed-channel systems used to transfer liquid aluminum from the furnace to the casting station. They are typically constructed from high-density calcium silicate board, refractory castable, or fiber-reinforced ceramic materials.
Launder Preheating Methods
Burner-Based Preheating
The most common launder preheating method uses gas-fired ribbon burners or radiant tube burners installed along the launder length. Natural gas or LPG combustion delivers uniform heat distribution across the refractory surface.
- Ribbon burners: flame width 50mm to 150mm, heat input 5 kW/m to 25 kW/m.
- Heating duration: 2 to 6 hours depending on launder length and refractory mass.
- Target preheat temperature: 300°C to 400°C (572°F to 752°F) minimum.
Electric Resistance Heating
Resistance heating elements embedded in launder covers or positioned above the channel deliver clean, precise heat without combustion products. This method is preferred in facilities with strict emissions standards.
- Heating element type: silicon carbide (SiC) or Kanthal FeCrAl alloy.
- Power density: 15 kW/m² to 40 kW/m².
- Control accuracy: ±5°C with PID controllers.
Induction Preheating
Electromagnetic induction coils positioned around launder sections can rapidly heat metal-backed refractory structures. This approach is less common for launder preheating but is growing in automated casting lines.
Launder Heating Rate Specifications
| Launder Parameter | Specification Range |
|---|---|
| Preheat Start Temperature | Ambient (15°C to 35°C) |
| Target Operating Temperature | 300°C to 400°C |
| Heating Rate | 50°C/hour to 150°C/hour |
| Soak Duration at Target Temp | 30 minutes to 2 hours |
| Fuel Consumption (Gas) | 0.5 m³/m/hour to 2.5 m³/m/hour |
| Electric Power Demand | 3 kW/m to 15 kW/m |
| Thermocouple Type | Type K (Chromel-Alumel) |
What Are the Technical Specifications for Aluminum Ladle Preheating?
Ladles used in aluminum casting range from small hand-poured shanks holding 10 kg to large transfer ladles with capacities exceeding 2,000 kg. Each ladle size and geometry requires specific heating equipment and temperature profiles.
Ladle Preheating System Types
Top-Fired Ladle Heaters
These units position a high-velocity burner above the ladle opening, directing flame downward into the vessel. This is the most widely used configuration in primary aluminum and secondary aluminum smelters.
- Burner type: high-velocity nozzle mix or premix.
- Flame temperature: 1100°C to 1500°C (at burner outlet)
- Ladle target temperature: 350°C to 500°C.
- Heating time for 500 kg ladle: 45 minutes to 90 minutes.
- Heating time for 2000 kg ladle: 2 hours to 4 hours.
Side-Entry Ladle Heaters
Burners enter through ports on the ladle sidewall, providing more uniform heat distribution around the circumference. This design is preferred for large-capacity ladles where top-fired systems cannot achieve sufficient temperature uniformity.
Electric Ladle Heaters
Resistance or infrared electric heaters positioned above or around the ladle provide flameless heating. Benefits include precise temperature control, no combustion byproducts, and compatibility with clean-room casting environments.
Ladle Preheating Temperature Specifications by Ladle Size
| Ladle Capacity (kg) | Min Preheat Temp (°C) | Max Preheat Temp (°C) | Heating Duration | Power Input |
|---|---|---|---|---|
| Up to 50 kg | 150°C | 300°C | 15 to 30 min | 2 kW to 5 kW |
| 50 to 200 kg | 200°C | 380°C | 30 to 60 min | 5 kW to 15 kW |
| 200 to 500 kg | 250°C | 420°C | 60 to 90 min | 15 kW to 30 kW |
| 500 to 1000 kg | 300°C | 450°C | 90 to 150 min | 30 kW to 60 kW |
| 1000 to 2000 kg | 350°C | 500°C | 120 to 240 min | 60 kW to 120 kW |
| Over 2000 kg | 400°C | 520°C | 240 to 360 min | 100 kW to 200 kW |
Refractory Lining Impact on Preheating Requirements
The type of refractory lining inside the ladle significantly affects preheating duration and temperature targets:
- Calcium silicate board linings: Lower thermal mass, faster preheating, minimum 200°C recommended.
- Castable refractory linings: Higher thermal mass and porosity, require longer preheating cycles (150°C to 300°C minimum for curing dry-out).
- Monolithic refractory (after repair): Requires staged dry-out: 110°C for 4 hours, then ramp to 350°C over 8 hours.
- Insulating firebrick: Moderate preheat, typically 250°C minimum.
Which Burner Technologies Are Used in Aluminum Preheating Systems?
Burner selection is one of the most consequential engineering decisions in designing or specifying a preheating system. The wrong burner type leads to poor temperature uniformity, excessive fuel consumption, refractory damage from hot spots, and unreliable heating cycles.
Gas-Fired Burner Comparison for Aluminum Preheating
| Burner Type | Heat Input Range | Temperature Uniformity | Best Application |
|---|---|---|---|
| Ribbon Burner | 5 kW to 50 kW | ±15°C to ±30°C | Launder surface heating |
| High-Velocity Nozzle Mix | 20 kW to 500 kW | ±10°C to ±20°C | Large ladle top-firing |
| Radiant Tube Burner | 10 kW to 100 kW | ±5°C to ±15°C | Indirect launder heating |
| Flat Flame Burner | 15 kW to 200 kW | ±10°C to ±25°C | Ladle sidewall coverage |
| Premix Burner | 2 kW to 30 kW | ±5°C to ±10°C | Small ladle and tooling |
| Oxygen-Enriched Burner | 50 kW to 1000 kW | ±20°C to ±40°C | Rapid high-temp preheating |
Combustion Air and Fuel Ratios for Aluminum Preheating
Proper air-to-fuel ratio (AFR) control is essential. Aluminum is highly susceptible to oxidation, and excess oxygen in the heating zone accelerates refractory degradation while introducing oxidizing atmospheres that can affect metal quality.
- Recommended excess air level: 5% to 15% (lambda = 1.05 to 1.15).
- Natural gas (methane) stoichiometric AFR: 9.5:1 to 10.5:1 by volume.
- LPG stoichiometric AFR: 23.5:1 to 25.5:1 by volume.
- Oxygen-enriched combustion AFR: variable based on enrichment level.
How Are Temperature Controls and Monitoring Systems Integrated?
Modern aluminum preheating systems are not standalone heaters — they are integrated thermal management systems with closed-loop temperature control, data logging, and safety interlocks.
Temperature Measurement Devices for Preheating Systems
Thermocouples
Type K thermocouples (chromel-alumel) are the standard for aluminum launder and ladle preheating, covering the range -200°C to 1260°C with accuracy of ±1.5°C to ±2.5°C.
Type N thermocouples offer superior drift resistance at elevated temperatures and are increasingly preferred for applications above 600°C.
Infrared Pyrometers
Non-contact temperature measurement using infrared pyrometers allows real-time surface temperature monitoring without physical contact. This is particularly valuable for rotating ladles or launders where thermocouple wiring is impractical.
- Measurement range: 200°C to 1600°C
- Emissivity setting for refractory: 0.85 to 0.95
- Response time: 100 ms to 500 ms
Thermal Imaging Cameras
Infrared thermal cameras provide full surface temperature mapping, identifying cold spots, hot spots, and refractory degradation zones that point-measurement devices cannot detect.
Control System Architecture
| Control Component | Function | Typical Standard |
|---|---|---|
| PID Temperature Controller | Closed-loop burner or heater control | IEC 61511 |
| Programmable Ramp/Soak Controller | Staged preheating profiles | NFPA 86 |
| Safety Interlock System | Burner flame failure protection | EN 746-2 |
| Data Logger | Temperature history recording | ISO 9001 audit trail |
| HMI Display | Operator interface | SCADA integration |
| Remote Monitoring Module | IoT connectivity | Industry 4.0 compatible |
What Are the Safety Requirements for Aluminum Launder and Ladle Preheating?
Safety is non-negotiable in aluminum preheating operations. The combination of open gas flames, high temperatures, combustible insulation materials, and molten metal proximity creates a complex hazard environment.
Primary Safety Hazards in Aluminum Preheating
Steam Explosion Risk
Even minimal residual moisture in a refractory lining — as little as 0.5% by weight — can generate sufficient steam pressure to cause explosive ladle failure when contacted by molten aluminum at 700°C+. Our recommendation: always verify refractory moisture content using a moisture meter before the first pour.
Gas Leak and Combustion Hazard
Unburned natural gas or LPG accumulation in confined spaces around launders and ladles is an ignition hazard. Required safeguards:
- Flame failure detection (UV scanner or flame rod).
- Gas pressure proving switches.
- Manual and automatic gas shutoff valves.
- Pre-purge of combustion chamber before ignition.
Thermal Runaway in Electric Systems
Over-temperature protection is mandatory for electric heating elements. SiC elements in particular can enter thermal runaway conditions if the controller fails in an open-loop state.
Applicable Safety Standards
| Standard | Jurisdiction | Scope |
|---|---|---|
| NFPA 86 | USA | Ovens and furnaces, combustion safety |
| EN 746-2 | European Union | Combustion equipment for heat treatment |
| EN 1539 | European Union | Dryers and ovens containing flammable substances |
| OSHA 29 CFR 1910.146 | USA | Confined space entry near ladle stations |
| ISO 11612 | International | Protective clothing for heat and flame |
| AS/NZS 4600 | Australia/NZ | Cold-formed steel structures in ladle frames |
How Do Refractory Materials Affect Aluminum Preheating System Design?
Refractory selection is deeply interconnected with preheating system design. The thermal conductivity, specific heat capacity, and maximum service temperature of the refractory material directly determine the required heat input, heating duration, and maximum allowable heating rate.
Common Refractory Materials in Aluminum Launders and Ladles
| Refractory Material | Thermal Conductivity (W/m·K) | Max Service Temp (°C) | Typical Thickness (mm) |
|---|---|---|---|
| Calcium Silicate Board | 0.13 to 0.22 | 900 to 1050 | 25 to 75 |
| Insulating Castable | 0.25 to 0.45 | 1100 to 1400 | 50 to 150 |
| Dense Castable | 1.0 to 2.5 | 1400 to 1600 | 50 to 200 |
| Ceramic Fiber Board | 0.08 to 0.15 | 1000 to 1260 | 25 to 75 |
| Alumina-Silica Brick | 0.9 to 1.5 | 1250 to 1600 | 75 to 150 |
| Cordierite Castable | 0.5 to 1.2 | 1300 to 1450 | 50 to 125 |
Refractory Dry-Out Schedules
Newly installed or repaired refractory linings require a formal dry-out schedule before service. Accelerated dry-out without following the correct ramp rate causes cracking, spalling, and premature failure.
Standard Refractory Dry-Out Schedule for Aluminum Ladles:
- Room temperature to 110°C at 25°C/hour — hold for 4 hours (free water removal).
- 110°C to 200°C at 20°C/hour — hold for 2 hours (bound water removal).
- 200°C to 350°C at 30°C/hour — hold for 2 hours (chemical water and organics).
- 350°C to target operating temperature at 50°C/hour — hold for 1 hour.
- Cool to handling temperature naturally (no forced cooling).
What Is the Energy Efficiency Profile of Modern Aluminum Preheating Systems?
Energy consumption in aluminum preheating represents a significant operational cost, particularly for high-volume foundries running multiple casting lines simultaneously. We have benchmarked preheating energy costs across several facilities and found that regenerative and recuperative burner systems consistently deliver 30% to 50% energy savings compared to conventional open-flame systems.
Energy Consumption Comparison
| Preheating System Type | Energy Efficiency | Fuel Consumption | CO2 Output |
|---|---|---|---|
| Conventional open-flame gas burner | 25% to 40% thermal efficiency | High | High |
| Recuperative gas burner | 45% to 60% thermal efficiency | Medium | Medium |
| Regenerative gas burner | 65% to 80% thermal efficiency | Low | Low |
| Electric resistance heating | 85% to 95% thermal efficiency | N/A (electric) | Depends on grid |
| Induction heating | 90% to 98% thermal efficiency | N/A (electric) | Depends on grid |
Waste Heat Recovery Options
- Recuperator heat exchangers: recover flue gas heat to preheat combustion air.
- Regenerative burner pairs: alternating combustion chambers with ceramic heat storage.
- Heat pipe systems: passive transfer of exhaust heat to adjacent launder sections.
- Steam generation from waste heat: viable in very large launder preheating installations.
How Do Aluminum Alloy Grades Influence Preheating Temperature Selection?
Different aluminum alloy series have distinct liquidus temperatures, fluidity characteristics, and sensitivity to hydrogen absorption. These differences affect the required preheating temperatures for launders and ladles.
Aluminum Alloy Preheating Considerations by Series
| Alloy Series | Composition | Liquidus Range (°C) | Recommended Preheat Temp (°C) |
|---|---|---|---|
| 1xxx (Pure Al) | >99% Al | 660°C | 300°C to 380°C |
| 2xxx (Al-Cu) | Al + 3.8% to 5% Cu | 630°C to 660°C | 320°C to 400°C |
| 3xxx (Al-Mn) | Al + 1% to 1.5% Mn | 648°C to 660°C | 300°C to 380°C |
| 4xxx (Al-Si) | Al + 5% to 12% Si | 577°C to 638°C | 280°C to 360°C |
| 5xxx (Al-Mg) | Al + 0.5% to 5.5% Mg | 600°C to 650°C | 300°C to 400°C |
| 6xxx (Al-Mg-Si) | Al + Mg + Si | 615°C to 654°C | 310°C to 390°C |
| 7xxx (Al-Zn) | Al + 1% to 8% Zn | 477°C to 635°C | 350°C to 450°C |
High-magnesium alloys (5xxx series) are particularly sensitive to oxide inclusion formation during transfer, making preheating temperature uniformity and controlled atmosphere conditions more critical than for other alloy groups.
What Are Best Practices for Launder and Ladle Preheating in Industrial Foundries?
Drawing on practical experience from foundry optimization projects, we have identified the following as the most impactful operational best practices:
Pre-Production Inspection Protocol
Before initiating any preheating cycle, technicians should complete a systematic inspection:
- Visual inspection of refractory surface for cracks, spalling, or contamination.
- Moisture content check using handheld refractory moisture meter (target: below 0.3% w/w).
- Thermocouple continuity check and calibration verification.
- Gas supply pressure verification (typical operating pressure: 20 mbar to 100 mbar).
- Burner nozzle inspection for blockage or wear.
- Safety interlock function test.
Heating Cycle Management
- Never exceed the refractory manufacturer’s maximum heating rate.
- Use ramp-and-soak temperature profiles rather than single-step heating.
- Monitor temperature at multiple points along launder length (minimum one thermocouple per 2 meters).
- Document every preheating cycle with time-stamped temperature records.
- Allow natural cooling after use — never quench with water or forced air.
Post-Use Maintenance
- Allow refractory to cool to below 100°C before any repair work.
- Remove metal skull (frozen aluminum) carefully using mechanical tools — never with flame cutting near refractory.
- Inspect refractory after each campaign for penetration depth and crack formation.
- Replace calcium silicate board sections when thickness loss exceeds 20% of original.
How Do Automated Preheating Systems Improve Aluminum Casting Quality?
The shift from manual to automated preheating control is one of the most significant quality improvements available to modern aluminum foundries. Automated systems eliminate operator-to-operator variability, enforce consistent ramp profiles, and provide audit-ready temperature records for quality management systems.
Automation Features in Modern Preheating Systems
Recipe-Based Heating Profiles
Operators select the appropriate recipe from a library stored in the controller. The system automatically executes the ramp, soak, and readiness check sequence. This eliminates the common problem of under-preheating caused by time pressure during production.
Integration with Casting Line Control Systems
Advanced preheating systems communicate with the casting line PLC via OPC-UA or Modbus protocols. The ladle or launder does not receive metal until the preheating system signals that the target temperature has been reached and maintained for the required soak period.
Predictive Maintenance Capabilities
Burner combustion analyzers, element resistance monitoring, and thermocouple drift detection enable condition-based maintenance schedules rather than fixed calendar-based replacement.
Frequently Asked Questions About Aluminum Launder and Ladle Preheating
1: What is the minimum safe preheat temperature for an aluminum ladle before pouring?
The minimum safe preheat temperature depends on ladle size and refractory type, but the general industry standard is 200°C minimum for all aluminum ladles. For ladles with castable refractory linings, 300°C to 350°C is more appropriate. Below these thresholds, residual moisture poses steam explosion risk.
2: How long does it take to preheat a 1,000 kg aluminum ladle?
A properly equipped top-fired ladle heater can bring a 1,000 kg ladle from ambient to 400°C in approximately 90 to 150 minutes. Factors that extend this time include high ambient humidity, new or repaired refractory, and lower burner capacity installations.
3: Can electric preheating systems replace gas burners for aluminum ladles?
Yes, electric systems are fully viable and preferred in facilities with renewable energy access or strict emissions limits. The main practical consideration is installed electrical capacity — a 2,000 kg ladle may require 100 kW to 150 kW of electric heating capacity, which requires significant electrical infrastructure investment.
4: What type of thermocouple is best for aluminum launder temperature monitoring?
Type K thermocouples are the most widely used for aluminum launder monitoring due to their wide temperature range (up to 1260°C) and low cost. Type N offers better stability above 600°C but at higher cost. Both use standard IEC 60584 calibration.
5: How does hydrogen porosity relate to inadequate preheating of launders?
Cold launder surfaces cause localized solidification of aluminum in contact zones, which slows metal flow and creates turbulence. This turbulence increases the surface area of the melt exposed to atmosphere, promoting hydrogen absorption. Additionally, moisture on launder surfaces directly introduces hydrogen into the melt via the reaction: 2Al + 3H2O = Al2O3 + 3H2.
6: What is the correct heating rate for a newly repaired ladle with castable refractory?
For freshly installed or repaired castable refractory, the maximum heating rate during dry-out is 20°C to 25°C per hour up to 250°C. After the 250°C hold (minimum 2 hours), the rate can increase to 50°C per hour up to the target temperature. Exceeding these rates causes steam pressure cracking.
7: Are there portable preheating solutions for aluminum ladles in smaller foundries?
Yes, portable propane or LPG burner heater units are commercially available and widely used in smaller foundries. These typically have heat outputs of 5 kW to 50 kW and can be positioned over standard ladle openings. Temperature control on portable units is often manual, requiring experienced operators to interpret thermocouple readings.
8: What safety certifications should a ladle preheating system carry?
At minimum, gas-fired preheating systems should comply with NFPA 86 (USA) or EN 746-2 (Europe), with CE marking for European markets. Burner components should carry FM or CSA approval (North America) or CE marking per EN 676 (Europe). The overall system should include documented risk assessment per ATEX directives if installed in potentially explosive atmospheres.
9: How do you calculate the required heat input for aluminum launder preheating?
The basic calculation uses the formula: Q = m × Cp × ΔT / efficiency, where Q is heat input in kJ, m is refractory mass in kg, Cp is specific heat capacity in kJ/kg·°C, and ΔT is the temperature rise required. For calcium silicate board with Cp = 0.85 kJ/kg·°C, heating 50 kg of refractory from 20°C to 350°C at 60% burner efficiency requires approximately 23,400 kJ of fuel energy input.
10: What is the difference between launder preheating and launder drying?
Launder drying specifically targets the removal of residual moisture from refractory after washing, cleaning, or installation. It typically operates at lower temperatures (100°C to 200°C) for extended periods. Launder preheating is the operational warm-up before each production run, bringing the launder to production-ready temperatures. New launder installations require both sequential processes.
Procurement Considerations for Aluminum Preheating Systems
For procurement engineers and capital equipment buyers, specifying a preheating system requires balancing several competing factors: total cost of ownership, heating capacity, fuel type compatibility, control system integration, and after-sales support.
Key Specifications to Include in Equipment Procurement RFQs
| Specification Category | Parameters to Define |
|---|---|
| Heat Output Capacity | kW rating, minimum and maximum modulation range |
| Fuel Type | Natural gas, LPG, electric, dual-fuel |
| Operating Temperature Range | Minimum and maximum target temperatures |
| Heating Rate Capability | °C/hour at rated conditions |
| Temperature Control Accuracy | ±°C requirement |
| Safety Compliance | Required certifications (NFPA 86, EN 746-2, CE) |
| Control System Interface | Analog, digital, Modbus, OPC-UA |
| Physical Dimensions | Burner head size, hose length, weight |
| Operating Lifetime | Expected service hours before overhaul |
| Warranty Terms | Parts and labor coverage period |
Total Cost of Ownership Factors
When comparing gas versus electric preheating systems over a 10-year operational period, the following cost components must be included:
- Equipment purchase price and installation.
- Annual fuel or electricity costs (based on operating hours).
- Maintenance parts and labor (burner tips, thermocouples, ignitors, elements).
- Refractory replacement costs influenced by heating quality.
- Downtime costs for equipment failures.
- Emissions compliance costs (carbon pricing, permits).
In regions with high natural gas costs and competitive electricity rates — particularly where renewable power is available — electric systems increasingly show favorable lifetime economics despite higher initial equipment cost.
Conclusion and Technical Summary
Preheating systems for aluminum launders and ladles are among the most technically critical and operationally significant systems in any aluminum casting facility. Getting the specifications right — temperatures, heating rates, burner types, refractory compatibility, and control systems — directly affects casting quality, equipment longevity, worker safety, and energy costs.
The key technical benchmarks to remember:
- Launder preheat: 300°C to 400°C minimum, 50°C to 150°C/hour heating rate.
- Ladle preheat: 200°C to 500°C depending on capacity and refractory type.
- New refractory dry-out: staged schedule starting at 20°C to 25°C/hour maximum.
- Thermocouple standard: Type K or Type N, IEC 60584 calibration.
- Safety compliance: NFPA 86 (USA), EN 746-2 (Europe).
- Energy efficiency: regenerative burners or electric systems for high-utilization applications.
We strongly recommend that foundries implement documented preheating procedures, automated temperature logging, and formal refractory inspection protocols as part of their quality management systems. These steps move preheating from an informal operator practice to a controlled, auditable process that consistently delivers superior casting quality and measurably extended ladle and launder service life.
