Gating System in Casting

Time:2025-12-25

A well-designed gating system is the single most effective lever a foundry has to reduce casting defects, control filling dynamics, trap slag, and ensure reliable feeding during solidification. Proper gating reduces turbulence, prevents inclusions, improves yield, and supports repeatable quality across sand casting, investment casting, and permanent-mold processes.

1. Why the gating system matters

A gating system is the conduit network that delivers molten metal from the ladle into the mold cavity while controlling velocity, thermal gradients, pressure, and slag separation. Effective gating accomplishes several simultaneous objectives: deliver metal quickly enough to avoid chill and misruns, keep flow laminar at the cavity entrance, trap slag and dross away from critical surfaces, and permit directional solidification with minimal excess metal waste. These roles together make gating design a primary determinant of casting quality and yield.

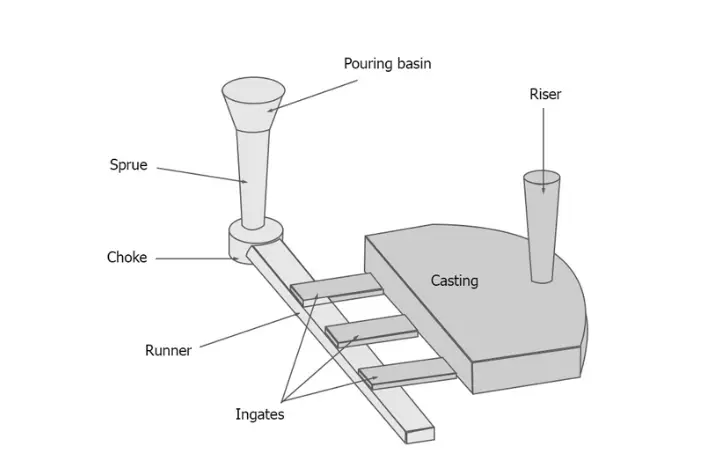

Gating System in Casting
Gating System in Casting

2. Core components and functional roles

A standard gating system comprises several linked elements. Each element has functional tradeoffs that influence filling time, turbulence, and throat pressures.

Major components

  • Pouring basin or cup: accepts ladle metal and reduces splash.

  • Sprue (downsprue): vertical channel that transports metal into the mould. Tapering reduces vortex and aspiration.

  • Sprue well or base: slows and smooths flow near the runner interface.

  • Runner — horizontal or angled channel that distributes metal to gates.

  • Ingate (gate): the final channel into the cavity, sized and shaped to control local velocity and direction.

  • Riser or feeder: supplies extra metal to compensate for shrinkage during solidification and serves as a pressure reservoir.

  • Skim trap, spin trap or sedimentation well — traps slag and heavy dross upstream of the gates.

  • Vents and vents paths: allow air and gases to escape during filling.

3. Objectives and performance criteria

When designing a gating system, engineers optimize several competing criteria:

  • Minimize turbulence at the gate to avoid entrained gas and oxide films.

  • Ensure complete cavity fill before significant solidification begins.

  • Control the filling time to balance thermal gradients and mold erosion.

  • Locate risers and gates to promote directional solidification and feed hot spots.

  • Trap inclusions and prevent slag reaching the cavity.

  • Minimize metal wasted by runners and risers to improve yield.

  • Keep pressures and velocities low enough to prevent mold erosion but high enough for complete fill.

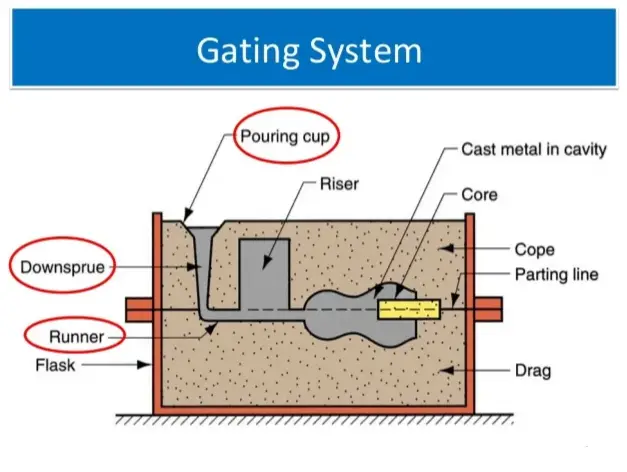

Mould gating system for foundry and metal casting
Mould gating system for foundry and metal casting

4. Types of gating systems and appropriate applications

Gating configurations vary by casting method and part geometry. Two broad classes are pressurized and unpressurized systems. Specific gate types include top gate, bottom gate, parting-line gate, blind gate, and multiple-gate arrangements.

By process

  • Sand casting — usually uses sprue-runner-ingate networks with well traps and risers.

  • Investment casting — uses a tree of channels with carefully dimensioned gates, often naturally pressurized for thin-wall parts.

  • Die casting — has short, direct gates and shot-sleeve arrangements not typical of expendable-mold gating.

  • Permanent mold and gravity die — use gating that delivers steady, controlled flow with attention to air evacuation.

Selection depends on mold strength, melt type, part thickness, and sensitivity to turbulence.

5. Practical design rules and dimensioning

Practical rules reduce cycle-and-error. Use them as starting points, then refine with simulation and shop trials.

General guidelines

  • Tapered sprue: cross sectional area reduces smoothly toward the base to maintain near-uniform velocity and prevent aspiration.

  • Choke sizing: a single effective choke controls flow and reduces turbulence; often the ingate or a reduced runner section serves this function.

  • Area ratios: maintain sprue area to runner area and runner area to ingate area ratios to avoid premature freezing or starvation. Common starting points place runner cross-sectional area at 2 to 4 times the ingate area depending on pour rate.

  • Runner profile: round or trapezoidal channels with smooth radii reduce surface erosion.

  • Gate shape: rounded or tapered gates produce smoother inlet flow; rectangular gates are used for high-volume parts where trimming is efficient.

  • Riser location: position risers at the heaviest sections and ensure feeding distance is minimized.

Below is a rule-of-thumb table for conventional sand casting. These are starting numbers. Refine by process, alloy, and simulation.

Element Typical starting dimension or ratio Notes
Sprue taper 1.5 to 2 degrees per side Maintain smooth reduction
Sprue to runner area ratio Sprue area ≈ 1.5 to 3 × runner area Prevent choking too early
Runner to ingate area ratio Runner area ≈ 2 to 4 × ingate area Higher ratio for thin walls
Pouring time target 10 to 60 seconds for small to medium sand castings Faster for thin aluminum parts
Riser head size 1.2 to 1.5 × casting hot spot cross section Depends on alloy shrink rate

(Use these values as a baseline. Always iterate with simulation or test pours.)

6. Flow physics and turbulence control

Filling the mold is a transient fluid dynamics problem with heat transfer and solidification coupling. Key principles:

  • Laminar or mildly turbulent flow near the gate prevents oxide entrainment. High Reynolds numbers at sharp turns create vortices that trap gas.

  • Smooth transitions from vertical to horizontal flow and rounded junctions reduce local velocity spikes.

  • Saltation or spin traps can induce a swirling motion that separates heavier slag from the main stream.

  • The choke reduces kinetic energy upstream, allowing the runner network to act as a buffer and permit slag to float upward into a well before reaching the ingate.

  • Venting near the gate and thin sections reduces back pressure that can cause misruns.

Using flow-control features reduces cold shuts, porosity, and surface defects.

7. Aluminum-specific considerations

Aluminum alloys have unique gating needs. Their high thermal conductivity and lower melting point compared with steel demand shorter fill times and robust trapping of dissolved hydrogen and oxides.

Key points for aluminum

  • Faster fill rates are often needed to avoid chill in long thin sections. This increases risk of turbulence and oxide films.

  • Hydrogen porosity is a predominant defect in aluminum castings. Dissolved hydrogen emerges as pressure drops and forms porosity during solidification. Degassing, careful melt handling, and filtration help mitigate this.

  • Ceramic foam filters and proper gating/runner traps reduce oxide and nonmetallic inclusions from entering the cavity. When combined with a well-placed skim trap, filtration greatly improves surface integrity.

Table Aluminum gating checklist

Issue Practical control measures
Hydrogen porosity Melt degassing, protective flux, low-turbulence fill
Oxide films Ceramic filters, spin traps, gated well
Thin-wall fill Increase gating flow area, reduced chill zones, shorter runners
Heat loss Use insulating feeds, thicker sprues, or heated molds if appropriate
Shrinkage Strategically placed risers or pressurized gating for thin shells

8. Simulation and optimization

Numerical simulation is standard practice for modern gating design. Tools compute filling sequences, identify hot spots, and quantify turbulence and air entrapment. Simulation helps reduce trial pours and accelerates optimization.

  • Use flow and solidification simulation early to compare several gating options. Automatic optimization tools can vary gate sizes, runner layout, and riser geometry within constraints to find minimal-defect solutions.

  • Validate simulation with a set of physical test pours and radiographic inspection because models depend on correct input data for metal properties and casting temperature.

9. Defects tied to gating and remedies

Below is a compact defect matrix focused on gating-related root causes and practical solutions.

Defect Typical gating root cause Remedy
Cold shuts / misruns Slow fill, premature solidification near thin sections Increase flow area, shorten flow path, preheat mold
Porosity (hydrogen) Turbulent flow, high hydrogen content Degas melt, reduce turbulence, use filters
Inclusions / slag No skim traps or filters, direct gate into cavity Add spin trap, ceramic filtration, relocate gates
Sand erosion High local velocity, sharp corners Smooth runner geometry, reduce decrease velocity
Shrinkage cavities Poor riser placement or undersized risers Add or enlarge risers, change gating to feed hot spot

10. Practical layout, trimming, and fettling strategies

  • Place runners to minimize trimming on critical surfaces. Use sacrificial runner bars where possible for automated trimming.

  • Position gates on non-critical faces or machining allowance zones.

  • Use choke designs that leave a reasonable amount of material left for trimming while still controlling flow.

  • For automated fettling, standardize gate locations across a family of parts to let downstream operations run consistently.

11. Metrics and inspection

Track gating-related metrics to control quality: fill time, pour temperature, melt cleanliness index, porosity rates, scrap attributed to gating. Typical inspection methods include radiography, CT scans, ultrasonic testing, and visual checks. Implement root-cause analysis on returned defects and update gating rules with corrective geometry changes.

12. Example gating arrangements

Single sprue with runner bar and multiple ingates: Good for medium-size, multi-cavity molds when even distribution is needed.
Multiple downsprues feeding separate runner loops: Used for large castings where long flow paths would otherwise cool too much.
Spin trap with filtration upstream of ingate: Common in aluminum production lines to combine mechanical filtration with sedimentation.

13. Tables: comparisons and quick references

Table A. Component checklist for gating design review

Component Purpose Typical failure mode to watch
Pouring cup Smoothes ladle transfer Splashing, cold metal
Sprue Vertical transport Aspiration if untapered
Well Slows turbulence Sediment overflow if too small
Runner Distributes metal Excessive pressure drop
Ingate Controls local fill Turbulence into cavity
Riser Feed metal during solidification Inadequate size leads to shrinkage
Spin trap Separates slag Requires correct placement to be effective
Filter Capture inclusions Wrong mesh or location reduces yield

Table B: Gate type comparison

Gate type Pros Cons Typical use case
Top gate Simple, gravity-aided Higher turbulence at entrance Heavy sections or simple parts
Bottom gate Fills upward, less turbulence More complex tooling, possible erosion Thin-walled parts, aluminum
Parting-line gate Easy to machine and trim Possible air entrapment in some geometries Sand casting with parting-line access
Blind gate Hidden gate, cosmetic surfaces spared Difficult trimming, risk of misgate Investment castings requiring clean surfaces

14. Implementation checklist for foundries

  1. Define casting alloy and required mechanical properties.

  2. Choose gating class appropriate for process and part geometry.

  3. Layout sprue-runner-ingate network using baseline ratios.

  4. Add filtration and skim trapping for aluminum or dirty melts.

  5. Simulate filling and solidification. Verify hot spots and predicted defects.

  6. Run small-scale test pours, inspect and iterate.

  7. Finalize tooling and standardize gating for production runs.

  8. Record metrics and update design as materials or cycle timing change.

15. FAQs

1. What is the single most important change to reduce casting defects caused by gating?
Control turbulence at the gate and add upstream filtration or a spin trap. Low-turbulence entry combined with filtration drastically reduces entrained oxides and inclusions.

2. Should I always taper the sprue?
Yes. A tapered sprue maintains near-constant velocity and reduces aspiration risk. Untapered sprues cause vortex formation and air entrainment.

3. How do I reduce hydrogen porosity in aluminum castings?
Combine melt degassing, controlled pouring velocity, appropriate filtration, and reduced exposure to moisture. Positioning skim traps ahead of gates also helps.

4. When is a bottom gate better than a top gate?
Bottom gates are preferred when upward filling produces less turbulence at critical surfaces or when upward fill improves directional solidification.

5. How large should an ingate be relative to the runner?
Start with a runner-to-ingate area ratio of 2 to 4 depending on thinness of sections, then refine using simulation and test pours.

6. Can simulation replace shop trials?
No. Simulation guides design and reduces iterations, but final validation by trial pours is required because inputs like actual oxide behavior and melt cleanliness can vary.

7. Are ceramic foam filters always necessary?
Not always, but they are highly recommended for aluminum and other alloys that form oxides or contain inclusions. They boost surface quality and reduce rework.

8. How do gating choices affect yield?
Wider runners and large risers increase waste and reduce yield. Optimize gate paths and use multiple smaller risers where feasible to balance feed effectiveness and yield.

9. What is a spin trap and when should I use it?
A spin trap is a trap at a runner junction that directs flow into a swirl to separate slag. Use it when slag and dross are a regular issue and filtration alone is insufficient.

10. How often should the gating design be reviewed?
Review when changing alloy, part geometry, cycle time, or when defect rates rise. Implement controlled change processes to ensure gating updates are tested.

16. Closing recommendations for AdTech

  1. For aluminum foundries, combine gating improvements with melt-degassing systems and ceramic filtration to address both flow and melt cleanliness simultaneously.

  2. Use simulation early in the design phase to select promising gating topologies and to prioritize riser placement.

  3. Standardize a small set of gating templates for families of parts to speed up tooling and to make automated trimming simpler.

  4. Capture process metrics and defect correlations so that gating design becomes a continuously improving part of the process control loop.

Key sources used for factual guidance and best-practice synthesis

  • Foundry handbooks and modern gating design summaries that define the gating system components and objectives.

  • Practical process writeups and sand casting tutorials that list gating elements and routine shop recommendations.

  • Technical papers and industrial case studies on systematic optimization and simulation-led gating design.

  • Industry articles and technical notes on gating techniques, risers, spin traps, and venting strategies.
