Sprue and Riser in Casting

Proper sprue and riser design is fundamental to producing castings free of shrinkage porosity, with higher effective yield and reduced scrap rates. When sprues, risers, gating and chills are designed together according to solidification principles, heat-transfer control and practical foundry constraints, most shrinkage and piping defects can be prevented while keeping material and machining costs low.

1. Introduction and core purpose

Sprue and riser components form the feeding system that supplies liquid metal to a solidifying casting. While gating controls metal flow into the mold cavity, risers provide a metal reservoir large enough to feed molten metal into shrinking areas during solidification. The sprue usually connects pour cup to runner and cavity, creating a controlled path while absorbing turbulence and minimizing air entrainment.

2. Definitions and the role each component plays

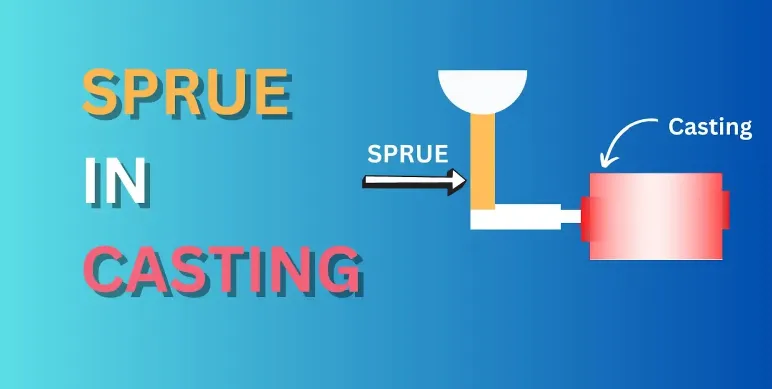

Sprue — the vertical feed channel

A sprue is a vertical passage that conducts molten metal from the pouring basin to the gating system. Key functions:

• Provide a steady head of metal to maintain flow through gates.

• Reduce turbulence through tapered geometry and carefully sized area transitions.

• Act as a sacrificial element that can trap slag and dross near the top if designed with proper traps.

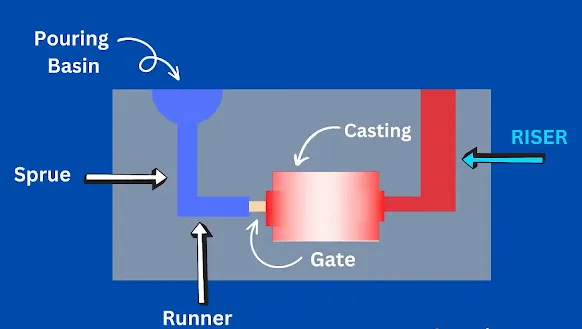

Riser — the feeding reservoir

A riser, also called feeder, is a localized reservoir connected to the casting by feeders or gates. Its primary purpose:

• Supply liquid metal to compensate for volumetric contraction during solidification.

• Freeze after the critical region of the casting, maintaining liquid continuity.

Other elements in the feeding system

• Pouring basin: initial pour location to reduce splash.

• Runner: horizontal channel distributing metal among cavities.

• Gate: final constriction into the mold cavity.

• Chills: local heat sinks to speed solidification in selected regions.

3. Solidification fundamentals that determine feeding performance

Directional solidification principle

Effective feeding depends on establishing a controlled solidification front that travels from thin sections to risers. The riser must remain molten until the casting zone that it feeds is fully solidified. This is often described by simple thermal logic: metal freezes first where the local cooling rate is highest; the riser must have lower cooling rate or larger thermal mass.

Concept of freezing modulus

Freezing modulus M = Volume / Surface area. Regions with smaller modulus freeze faster. A riser should have a modulus that is larger than the modulus of the casting region it serves. Typical design goal: M_riser ≥ 1.2 to 1.5 × M_section.

Heat flow and conduction paths

Solidification depends on heat conduction into the mold wall, into cores, through riser necks and through chills. Minimizing unwanted heat paths and controlling intentional ones is a core design task.

Nucleation and shrinkage distribution

Macro-porosity arises where shrinkage cannot be fed. Micro-porosity relates to interdendritic feeding and solute redistribution. Riser location and gating should reduce macroscale feed distances and support secondary feeding mechanisms that reduce micro-porosity.

4. Types of sprues and practical considerations

Straight tapered sprue

Most common in sand casting. Taper reduces suction, helps maintain hydrostatic head while trapping gas at the top. Taper angles vary by metal type and pour practice.

Bell or branched sprue

Used to supply several runners. Often includes traps for slag and metal separators.

Bottom-pour sprue

For refractory-lined ladles or ceramic shells; reduces splash and oxides entering the gating network.

Sprue design best practices

• Use gradual area transitions to avoid sudden velocity jumps.

• Add sprue well or trap for slag collection.

• Fit sprue cooling or insulating sleeves when long pour time threatens premature freezing.

5. Riser types and placement strategies

Open risers

Externally visible, simple to construct, easy to remove. Best for single-piece castings or prototypes, where minimal machining is required.

Blind risers

Located within the mold, filled during pour and cut off after solidification. Useful where surface finish of the final casting must be preserved.

Submerged risers

Connected below the mold surface or partially covered to reduce atmospheric contamination and decrease heat loss.

Hot risers and exothermic risers

Provide prolonged molten life by insulating or by using exothermic sleeves that generate heat through controlled chemical reaction.

Riser placement guidelines

• Place riser on heaviest section or nearest thick region needing feed.

• Prefer vertical risers where practical; cylindrical risers give predictable modulus.

• Multiple small risers can feed distributed shrinkage, but total riser area may reduce yield.

6. Riser sizing: empirical rules and calculation methods

Common empirical rules

• Riser diameter should be bigger than the section it feeds. Common rule: riser volume ≈ 1.5 to 2.0 × volume of the feeding section.

• Riser height should be enough to supply hydrostatic head and permit removal after solidification.

Riser modulus method (recommended)

1. Compute modulus of the casting section: M_cast = V_cast / A_cast.

2. Select desired multiplier (typical 1.2–1.5).

3. Solve for riser size that gives M_riser = multiplier × M_cast.

Chvorinov’s rule for solidification time

Chvorinov: t = C × (V/A)^n, usually n = 2 and C depends on material and mold thermal properties. Riser solidifies slower than casting if its (V/A) ratio squared times constant yields larger time.

Worked example (aluminum alloy)

• Casting section: rectangular block 100 mm × 50 mm × 20 mm.
  V_cast = 100 × 50 × 20 = 100,000 mm^3.
  Surface area approximate A_cast = 2(lw + lh + wh) = compute accordingly; use approximate thermal surface area including exposed surfaces.
  Compute M_cast then choose M_riser = 1.3 M_cast, then compute riser diameter for a cylinder V_riser = area × height and solve for required dimensions.
  (Full numeric example is provided in Table 2 later.)

7. Gating interplay: integrated design of sprue, gate, runner and riser

Flow control and turbulence management

Gates should reduce velocity into cavity to prevent entrainment. Sprue wells and tundishes help separate slag.

Sequential feeding logic

Riser should be connected to the casting zone by a gating area large enough to permit liquid feed during the entire time the casting solidifies, but small enough to encourage directional solidification.

Multiple cavities and balancing

In multi-cavity molds, runners and sprues must be balanced to ensure similar filling times and avoid premature solidification in one cavity while others still fill.

Use of filters

Ceramic foam filters and filter plates in runners reduce inclusions and turbulence downstream, indirectly protecting riser efficiency by reducing oxide films which hinder feeding.

8. Thermal control devices

Chills

Permanent or temporary heat sinks increase local cooling rate, shifting the solidification front away from risers. They are effective to ensure thin sections freeze first, driving feed toward risers.

Insulating sleeves and exothermic feeders

Insulation around risers or special exothermic sleeves maintains riser temperature and delays freezing. Exothermic mixes produce heat during the pour and extend riser life.

Hot tops

A temporary insulating cavity placed above the casting to concentrate shrinkage in a readily removable area. Useful when machining allowance is large and riser removal is acceptable.

9. Influence of alloy and section thickness

Aluminium alloys

• High thermal conductivity and low freezing range usually simplify feeding, but complex geometries with thick sections need careful riser sizing.

• Alloys with wider freezing ranges show more susceptibility to interdendritic shrinkage.

Steel and iron

• Lower thermal conductivity and higher melting point increase solidification time. Risers need to be larger and may require insulating sleeves.

• Casting design must manage directional solidification strongly to prevent shrinkage in heavy sections.

Thin-walled castings

Thin walls solidify quickly; use small local risers and gating to prevent cold shuts and handle quick freeze.

Thick-walled zones

Provide heavy risers, multiple feed paths, or use chills to promote directional solidification.

10. Simulation and predictive tools

Solidification simulation benefits

• Predict location of last-to-freeze regions.

• Estimate time to solidification and riser effectiveness.

• Visualize shrinkage porosity, temperature gradients and potential hot spots.

Typical software and use-cases

• Casting simulation packages integrate with CAD and allow sensitivity analysis: change riser size, add chills, adjust gating and instantly see results.

• Use simulation early in design to reduce costly trial-and-error.

11. Yield, economics and sustainability

Tradeoffs

Every riser is wasted metal. Minimize riser volume while ensuring quality. Optimize by placing risers only where needed, using exothermic or insulating risers, and employing simulation to minimize oversizing.

Material recovery and recycling

Where possible, riser scrap should be routed back to melting. Design for easier riser removal to reduce labor costs.

Environmental impact

Reduced scrap lowers energy consumption and greenhouse emissions from re-melting and reprocessing.

12. Common defects linked to sprue and riser errors, with corrective actions

Shrinkage porosity

Cause: inadequate riser volume or poor placement.
Fix: increase riser modulus, relocate riser closer to hot spot, add feeder neck with lower thermal conductance.

Hot tears and cracks

Cause: restraint during contraction and incorrect feeding causing tensile stresses.
Fix: modify mold design to allow contraction, reduce section thickness gradients, add chills to control solidification pattern.

Gas porosity and blowholes

Cause: turbulence in sprue or trapped gas in riser well.
Fix: add sprue well, reduce velocities, improve venting.

Misruns and cold shuts

Cause: insufficient head or premature freezing in runner or sprue.
Fix: enlarge sprue or runner cross-section, adjust pour temperature or use insulating sleeves.

13. Inspection, testing and quality control

Non-destructive testing

X-ray radiography and CT scanning reveal internal shrinkage. Ultrasonic tests detect dispersed porosity. Dye-penetrant testing finds surface cracks.

Destructive checks

Sectioning critical castings to inspect feed areas and solidification structure is common during process validation.

Process monitoring

Measure pouring temperature, pour rate, and pouring time. Keep records for traceability and continuous improvement.

14. Practical design checklist for sprue and riser systems

• Identify the last-to-freeze regions using modulus or simulation.

• Choose riser type: open, blind, submerged, exothermic.

• Size riser modulus ≥ 1.2 × casting modulus for initial estimate.

• Ensure riser has clear feed path and minimal thermal bridges to avoid premature freezing.

• Add chills when necessary to direct the solidification front.

• Provide proper gating to limit turbulence and protect feed channels.

• Balance multi-cavity arrangements to equalize fill times.

• Use filters where metal cleanliness is critical.

• Verify design with simulation.

• Prototype with instrumented castings if part function is high-risk.

15. Quick reference tables

Table 1: Common riser types and suggested uses

Table 2. Worked riser sizing example (aluminum alloy) (rounded numbers)

Notes: This example simplifies surface area contributions and ignores runner/gate heat effects. Use simulation for final sizing.

Table 3. Typical riser volume multipliers by alloy and casting geometry

16. Common mistakes and how to avoid them

Oversized risers

Problem: unnecessary scrap, longer cooling times, higher cost.
Prevention: use modulus method and simulation to refine size; favor exothermic sleeves to reduce volume.

Risers located too far from hot spots

Problem: cannot feed critical regions.
Prevention: place risers directly above or adjacent to hot zones; use feeder necks with controlled thermal conductance.

Poor gating leading to turbulence

Problem: oxide films and gas entrapment hinder feeding.
Prevention: use gradual area transitions, filter elements and sprue wells.

17. Advanced techniques and new practices

Use of 3D printed mold cores and conformal feeders

Additive manufacturing enables complex feeder geometries that can be optimized for heat flow and removal, allowing better feeding with reduced scrap.

Real-time monitoring

Temperature sensors placed in risers and hot spots during prototyping help validate cooling curves and feed effectiveness.

Hybrid feeding strategies

Combine chills, insulated risers, and exothermic sleeves to tailor solidification across complex, multi-thickness castings.

18. Case study summaries

Automotive aluminium cylinder head

Problem: shrinkage porosity formed in thick valve-guide bosses.
Solution: relocated blind risers to valve seat islands, added exothermic sleeves and a local chill on the thin flange to force directional solidification. Result: porosity eliminated and machining scrap reduced by 70%.

Cast iron pump housing

Problem: macroshrinkage at junction of ribs and body.
Solution: added multiple small risers at rib junctions, balanced runners to even fill times and applied chills in thin areas to control solidification. Result: final casting passed radiographic inspection.

19. FAQs

1. How do I decide whether to use an open or blind riser?
   Open risers are simple and low-cost for prototypes. Blind risers work better for production castings that require surface finish near the riser location. Choose blind risers when post-machining or finishing needs make open riser removal impractical.

2. Can multiple small risers beat one large riser?
   Multiple small risers can feed distributed hot spots and reduce metal waste in some shapes. However, total riser volume and gating complexity often make a single appropriately sized riser preferable. Use simulation to compare options.

3. How does gating affect feeding efficiency?
   Gating must limit turbulence and preserve hydrostatic pressure. Poor gating creates oxide which blocks feeding paths. Proper gate design and filters protect riser feeding function.

4. What is a practical multiplier for riser modulus?
   A typical range is 1.2 to 1.5 times the casting modulus. For difficult alloys or heavy sections, use higher multipliers; for aluminium thin sections, smaller multipliers may suffice.

5. When should I use an exothermic riser sleeve?
   Use exothermic sleeves for heavy castings with long solidification times where insulating sleeves would be too large or where limited space prevents large riser volumes.

6. How do chills help feeding?
   Chills accelerate solidification in targeted regions, pushing the last-to-freeze zones toward the riser. They are particularly effective where geometry makes riser placement difficult.

7. Is simulation necessary?
   Simulation is highly recommended for complex geometries, multi-cavity patterns and critical components. It reduces trial-and-error and can significantly lower scrap and design cycles.

8. How much gating area should connect a riser to a casting?
   Gates should be sized to allow liquid metal flow during the entire solidification period while limiting heat loss through the gate. Use modulus and flow calculations, or simulation to fine-tune gate cross-section areas.

9. What inspection methods reveal riser-related defects?
   Radiography and CT scanning reveal internal shrinkage. Ultrasonic testing finds distributed porosity. Sectioning during process validation helps to locate last-to-freeze areas.

10. Can I recover riser metal for reuse?
    Yes. Riser scrap should be segregated and returned to the melt. Proper gating and removal reduce contamination and improve melt quality for reuse.

Closing notes

A solid feeding system starts with the fundamentals: understand heat flow, compute moduli for critical sections, choose riser type carefully and verify design with simulation or instrumented trials. Small changes in riser geometry, riser neck design, gate sizing or the addition of a chill can convert a high-defect process into a reliable production line. For critical parts, combine simulation with measured data to refine designs quickly.
