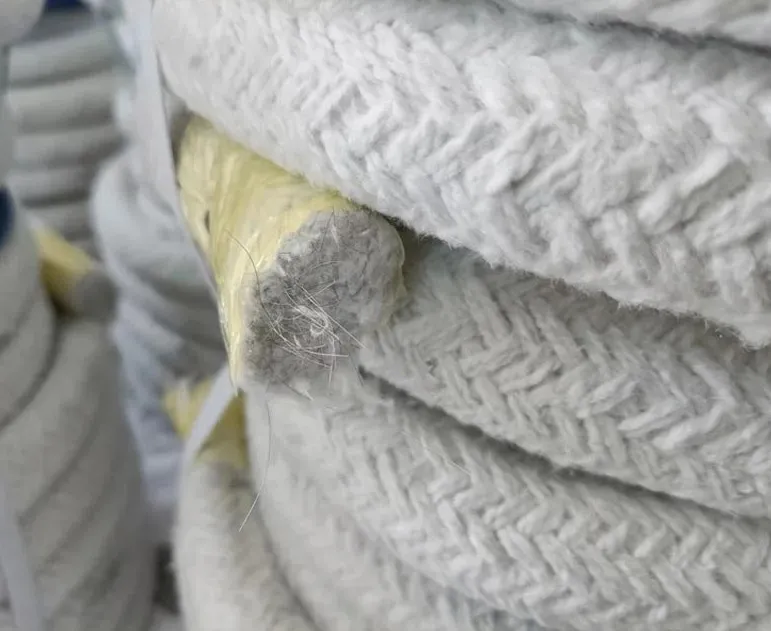

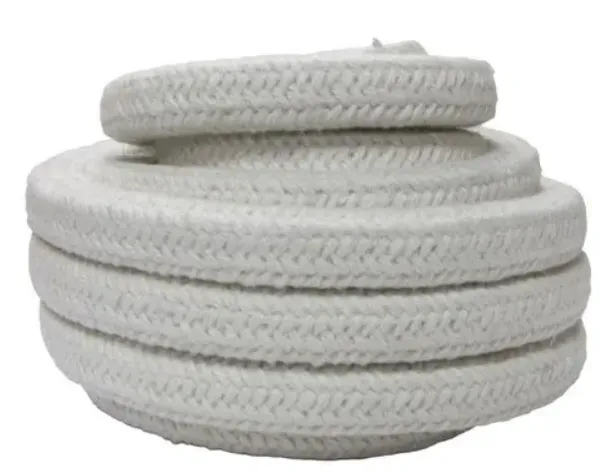

Insulation Ceramic Fiber Refractory Rope

For aluminum foundries that need durable sealing, reliable thermal control, and resistance to thermal shock and chemical exposure, ceramic fiber refractory rope is the best practical choice; braided and stainless steel reinforced variants deliver the combination of high temperature capability, compressibility for tight seals, and long service life that modern melting, ladling, and hot-top casting operations require. AdTech’s high-temperature braided ceramic fiber ropes and stainless steel reinforced packing are especially appropriate for furnace door seals, ladle spout seals, and hot-top containment in aluminum casting lines.

1. What ceramic fiber refractory rope is and why it matters

Ceramic fiber refractory rope is a flexible packable insulation formed from spun or blown alumina-silicate fibers that are twisted or braided into ropes intended for high-temperature sealing and insulation. It combines very low thermal conductivity, excellent thermal shock tolerance, and compressibility for forming tight joints around furnace doors, burner ports, ladle spouts, and pipe penetrations. Because it is nonmetallic in the core and can be supplied with stainless steel or glass filament reinforcement, it is uniquely suited to sealing moving or irregular surfaces where rigid insulation cannot function. Ceramic fiber rope is widely used in thermal processes because of its temperature capability, dimensional stability, and service life when selected and installed correctly.

2. Core materials and chemistry

Ceramic fiber rope products are derived from refractory ceramic fibers that are primarily alumina and silica based. Formulations and commercial names vary, but common grades include alkaline earth aluminosilicate fibers and high alumina fibers. Typical attributes tied to chemistry are:

• Alumina to silica ratio: higher alumina content increases structural stability at extreme temperatures.

• Binder content: some ropes include a small percentage of organic binder to aid handling; the binder typically burns out at moderate temperatures and must be considered during initial heat-up.

• Reinforcements: to improve tensile and abrasion strength, ropes are often reinforced with alkali-free glass filament or stainless steel wire.

Important practical takeaway: chemistry determines maximum continuous use temperature, chemical resistance, and reaction to flue gases. For aluminum melting and casting environments, alkali and fluoride exposure are key considerations because some chemicals can attack silica rich fibers.

3. Manufacturing forms and construction

Ceramic fiber rope is manufactured in several forms to match sealing, packing, or gasketing tasks:

• Twisted round rope: fibers twisted to a round cross section, standard for door seals and packing.

• Square braided rope: square braid gives better compression and sealing contact for door grooves and flange joints.

• 3-ply twisted and multi-ply braids: for greater tensile strength and lower unraveling.

• Core-reinforced rope: stainless steel wire or glass filament as internal reinforcement for pull strength and abrasion resistance.

• Coated or impregnated variants: surface coatings can reduce dusting and improve abrasion resistance.

Diameters typically range from 6 mm up to 50 mm or larger for special applications. Coil lengths and packaging vary by supplier so specify application, diameter, and whether reinforcement or cover braids are required when ordering.

4. Thermal performance and classifications

Ceramic fiber ropes are rated by continuous use temperature and short-term peak limits. Typical commercial classes are:

Key design point: continuous use temperature should not be confused with occasional peak capacity. For long-life sealing, choose a rope whose continuous rating exceeds the typical operating temperature of the part it seals by a safety margin of 100°C to 200°C.

5. Mechanical and handling properties

Ceramic fiber ropes are compressible and resilient which enables tight seals when forced into grooves or between faces. Important mechanical characteristics are:

• Bulk density: affects thermal conductivity and compressibility. Typical densities range 64 to 320 kg/m3 depending on grade.

• Tensile strength: improved by braid construction and core reinforcement; stainless steel core ropes provide much higher pull strength for suspended seals and moving joints.

• Abrasion resistance: braid pattern and optional braiding covers improve abrasion life.

• Thermal shock resistance: ceramic fiber ropes tolerate rapid temperature changes well compared with some rigid refractories.

6. Typical foundry and industrial applications with product fit

Ceramic fiber rope is used across many applications. The table below maps common use cases in aluminum foundries and adjacent processes to recommended types and where AdTech products fit.

AdTech supplies braided and reinforced ceramic fiber rope specifically sized for aluminum casting doors, ladles, and hot-top packages and can advise on braid type and diameter selection to match groove dimensions.

7. Installation techniques and best practices

Correct installation extends service life and improves thermal performance.

1. Prepare the groove: remove loose scale and old packing. Clean to bare metal where possible.

2. Use correct interference fit: for door seals, select rope diameter slightly larger than groove to ensure compression without overpacking. Overpacking can distort sealing faces.

3. Stagger joints: when using multiple lengths, stagger and compress ends to avoid a continuous seam line.

4. Secure reinforcement ends: for SS-core ropes, protect core ends from abrasion exposure and avoid sharp bending radii that may fatigue the wire.

5. Controlled initial heat-up: if rope contains organic binder, perform staged heat-up to burn off binder before reaching service temperature. Typical binder burn-out occurs near 400°C.

6. Avoid wet installation: moisture trapped in the packing can cause steam generation and spalling during heat-up.

AdTech provides installation kits and dimensional templates to help workshop teams cut and pack rope cleanly and repeatably.

8. Comparison with alternative materials

This table summarizes why ceramic fiber rope is chosen over common substitutes.

Practical outcome: for high-temperature aluminum foundry work, fiberglass and mineral wool are often inadequate. Asbestos is banned for health reasons and is not an option. Ceramic fiber rope is the most suitable for high-temp seals and is available with reinforcements to match mechanical requirements.

9. Safety, storage, environmental notes

• Dust and fiber handling: during cutting and installation the product generates dust and short fibers. Use local extraction, respirators rated for fibrous dust, gloves, and eye protection.

• Binder burn-out: binders that help form ropes will volatilize on heat-up. Follow staged heating procedures to avoid excessive smoke and to fully remove organics before full service.

• Disposal: follow local regulations for ceramic fiber waste. Many jurisdictions treat used ceramic fiber as inert industrial waste, but always confirm local rules.

• Regulatory status: refractory ceramic fibers have been the subject of regulatory review in some regions. Use supplier safety data sheets and confirm compliance for workplace exposure limits.

• Storage: store coils dry and protected from mechanical damage and contamination. Moisture can promote partial setting of binders making ropes harder to compress.

AdTech supplies SDS and installation checklists with every order.

10. How to select the right rope for your process

Selection depends on operating temperature, mechanical loads, chemical exposure, groove geometry, and movement. Checklist:

• Measure actual surface temperatures at the seal location.

• Choose a continuous use rating at least 100°C to 200°C higher than expected operating temperatures.

• Decide on reinforcement needs: use stainless steel core for tensile loads or abrasion. Use glass filament for electrical insulation and moderate strength.

• Select cross section: square braided for groove seals; round twisted for general packing.

• Select density: lower density for thermal isolation, higher density for wear resistance.

• Confirm chemical exposure: avoid if hydrofluoric acid or strong phosphoric acid present.

• Confirm statutory and hazardous material compliance in your area.

11. Maintenance and expected service life

Service life depends heavily on operating conditions and installation quality. Typical lives:

• Door seals on well-installed furnaces: months to multiple years depending on thermal cycling and abrasion.

• Ladle spout packing: often requires scheduled replacement due to erosion and alumina deposition.

• Hot-top seals: variable; inspect after each casting campaign.

Inspection items: compression set (loss of spring-back), visible fiber erosion, exposed reinforcement corrosion, and evidence of chemical attack. Replace before a full leak or induction of cold air into the furnace chamber occurs.

12. Procurement and technical support from AdTech

AdTech manufactures ceramic fiber ropes in sizes and constructions tailored to aluminum casting lines. Typical supply options:

• Standard braided ropes in diameters 6 mm to 50 mm.

• Stainless steel core reinforced round ropes for ladles and moving seals.

• Low-density ropes for hot-top thermal isolation.

• Pre-cut kits for common furnace door grooves.

AdTech technical service provides groove measurement support, installation instructions, and on-site commissioning advice for first installations. If you require datasheets, installation templates, or material sample testing, contact AdTech’s technical sales team and request the product technical data sheet and SDS.

13. FAQs

1. What maximum temperature can ceramic fiber rope tolerate continuously
   Typical continuous use ranges from about 1000°C to 1260°C depending on fiber type and braid. Always check manufacturer data for continuous rating and select an appropriate safety margin.

2. Do ceramic fiber ropes contain organic binders that will smoke on heat-up
   Some ropes include a small percentage of binder for handling; staged heat-up to burn off organics around 300°C to 400°C is advised.

3. When should stainless steel reinforced rope be used
   Use SS-core when the seal is under tensile load, subject to vibration, or where repeated handling or abrasion occurs.

4. Can ceramic fiber rope be used in an environment with acid fumes
   Ceramic fibers resist many corrosives but are vulnerable to hydrofluoric acid and certain strong alkalis. Confirm chemical compatibility on a case-by-case basis.

5. How do I size rope for a furnace door groove
   Measure groove width and depth. Choose square braid equal to or slightly larger than groove to achieve compression. AdTech provides sizing templates to ensure correct interference fit.

6. How does ceramic fiber rope compare to mineral wool
   Ceramic fiber rope handles significantly higher temperatures and offers better compressibility for sealing. Mineral wool is cheaper but less suitable for >600°C service.

7. Are ceramic fiber ropes certified for use in aluminum foundries
   Suppliers provide technical data sheets and SDS; certification varies by supplier and product. AdTech supplies compliance documentation on request.

8. What are common failure modes
   Thermal cycling leading to compression set, mechanical abrasion, chemical attack, and incorrect initial heat-up leading to binder char are common causes of premature failure.

9. Can I cut ceramic fiber rope on-site
   Yes. Use sharp shears, minimize dust, and wear appropriate PPE. Seal cut ends by recompressing into the joint; avoid leaving raw ends exposed in high-abrasion locations.

10. What inventory practices reduce downtime
    Keep common diameters in stock, maintain pre-cut kits for frequent replacement locations, and log seal life to plan preventive replacement before catastrophic failure.

Appendix — Useful technical tables

Temperature classification quick reference

Typical diameters and common uses

Quick comparison of braid types

Final practical recommendations for aluminum foundries

1. Audit your seals: map door seals, ladle spouts, burner ports and measure actual operating temperatures.

2. Specify continuous rating: for hot-top and ladle work, specify a rope whose continuous rating exceeds operating temp by at least 100°C.

3. Choose reinforcement by mechanical need: avoid over-specifying SS-core when not needed as it adds stiffness; use glass filament for electrical insulation needs.

4. Follow staged heat-up: always burn out binders slowly to avoid smoke and ensure packing sets correctly.

5. Work with your supplier: AdTech can provide sizing templates, pre-cut kits, SDS, and installation guides tailored to aluminum casting lines.
