Filter box parameter
| Specification | Filtering mode | lifting method | The lining | Heating cover |
| 15in | Primary filtration / two-stage filtration | Hydraulic rotation/ mechanical rotation/ flip open | Can be produced separately | Can be produced separately |
17in | Primary filtration / two-stage filtration | Hydraulic rotation/ mechanical rotation/ flip open | Can be produced separately | Can be produced separately |
20in | Primary filtration / two-stage filtration | Hydraulic rotation/ mechanical rotation/ flip open | Can be produced separately | Can be produced separately |
23in | Primary filtration/two-stage filtration | Hydraulic rotation/ mechanical rotation/ flip open | Can be produced separately | Can be produced separately |
26in | Primary filtration/two-stage filtration | Hydraulic rotation/ mechanical rotation/ flip open | Can be produced separately | Can be produced separately |

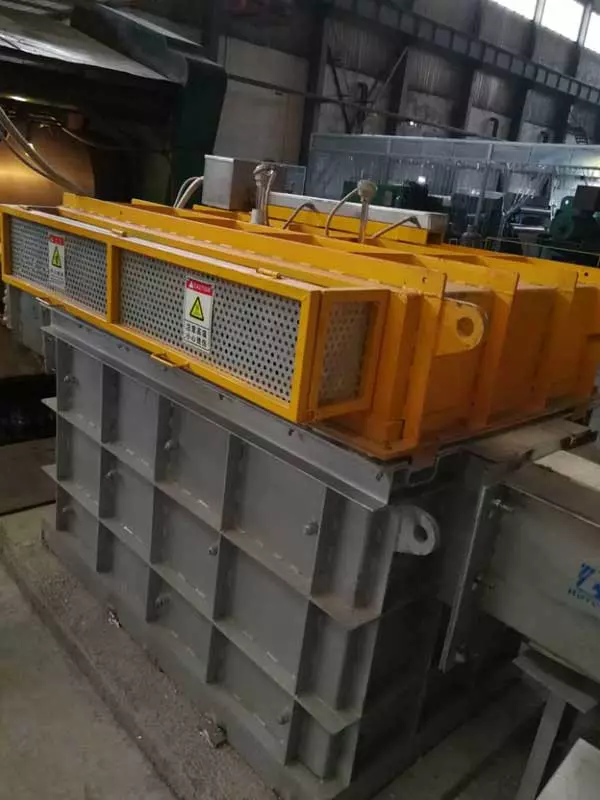

Advantages of Adtech filter box
It is made of a high purity silicon carbide material. The normal service temperature is 1450℃, it can be used continuously for 2200 hours. Features thermal resistance, anti-oxidation, corrosion resistance, warming up quickly, long lifetime, and acid resistance.
The casing is welded by the steel plate and adopted to the advanced rust removal process and corrosion-resistance coating.
With lifting and rotating device, small size, high accuracy, complete synchronization, good self-locking performance, and stable structure.
The lining is made of high silicon melting material. Non-stick aluminum, with high corrosion resistance, can prolong the lifetime.
With reasonable design and high absorbed ceramic foam filter.
It is used for the filtering and purifying of the molten aluminum, matching with the ceramic foam filter. It can filter the inclusions and tiny particles in the molten aluminum. Especially suit for the casting high purity aluminum and high precision aluminum alloy. It has the advantages of thermal resistance, anti-oxidation, corrosion resistance, warming up quickly, long lifetime, and acid resistance.
