Ceramic fiber rope is a flexible, high temperature insulation and sealing product made from alumino-silicate fibers that provides superior thermal barrier performance, low heat storage, and reliable gasketing for furnaces, kilns, boilers, molten metal seals, and expansion joints; proper selection and installation of the right rope type yields long service life, lower energy use, and safer operation in demanding thermal systems.
What is ceramic fiber rope?
Ceramic fiber rope is a manufactured textile formed by bundling or braiding ceramic fibers into cords, then finishing those cords into twisted ropes, square braids, or multicore braids. Standard fibers are alumina-silicate based and are produced by spinning molten material into filaments or by blowing fibers into a wool then converting that wool into yarns. The finished rope serves as a compressible, heat-resistant packing material that seals gaps, cushions movement, and limits heat transfer in high temperature equipment.
Types, construction methods, and typical formats
Ceramic fiber rope is available in multiple constructions that suit different applications and mechanical demands.
-

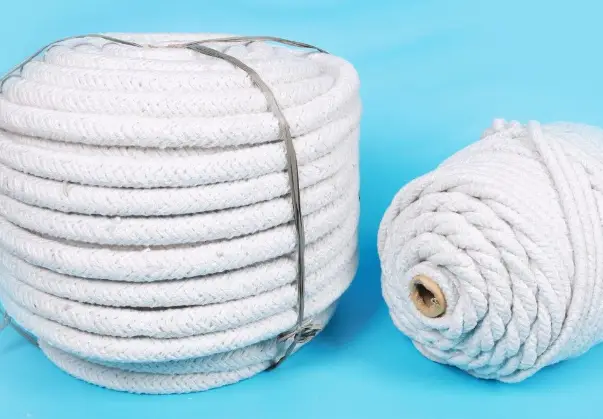

Twisted rope: multiple plies twisted together into a round cord. This type offers good compressibility and is common for furnace door seals and stove doors.
-

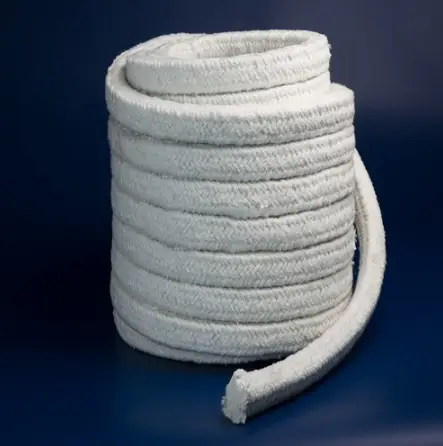

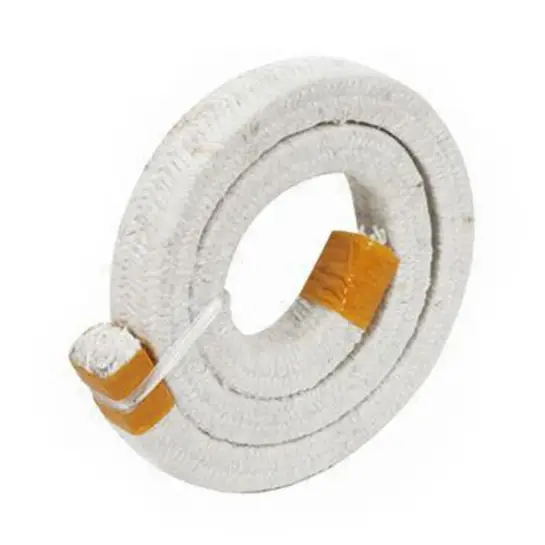

Square braid: woven into a denser cross section for higher abrasion resistance and better sealing where contact pressure is uneven.
-
Round braid: similar to square braid but with a round profile useful for bulb gaskets and round grooves.
-
Wire-reinforced rope: contains stainless or heat-resistant alloy wire braid. This increases tensile strength and permits continuous use at higher temperatures.
-
Coated or treated rope: rope that receives a refractory or colloidal coating to reduce dust, improve cohesion, or improve resistance to abrasion and molten metal contact.

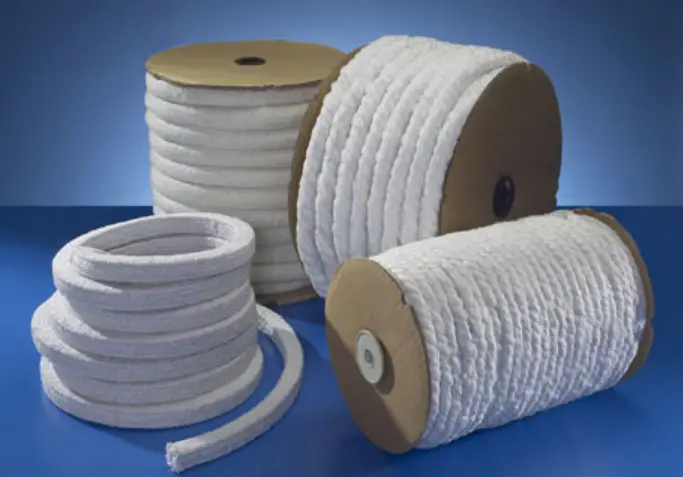

Common delivery forms include spools, coils, and pre-formed gasket sections. Standard diameters range from a few millimeters up to several centimeters, with custom sizes for specific grooves or bulbs.
Material chemistry and microstructure
Most ceramic fiber ropes are based on alumina-silicate chemistry. Fiber content and production route influence performance:
-
Alumina-silicate fibers deliver good thermal stability, low thermal conductivity, low density, and chemical resistance against many corrosive gases and molten non-ferrous metals.
-
High-alumina variants increase creep resistance and long-term strength at elevated temperatures. Wire reinforcement often pairs with high-alumina yarns when the service temperature must be sustained for long intervals.
Microstructure is fibrous with significant porosity. That structure provides low thermal mass, which means the rope does not store large amounts of heat and returns to ambient temperature relatively quickly once the heat source is removed. This trait reduces heat soak into adjacent structures.
Thermal performance and standard temperature ratings
Ceramic fiber rope is designed for extreme heat. Typical rated temperatures depend on construction and reinforcement:
| Construction type | Typical continuous use temperature (°C) | Short-term peak (°C) |
|---|---|---|
| Glass-braid reinforced | ~350 to 650 | ~700 |
| Standard alumino-silicate twisted rope | 650 to 1100 | 1100 to 1260 |
| Wire-reinforced (stainless or alloy) | 1050 to 1260 | up to 1300 for short periods |
| High-alumina specialty rope | 1100 to 1400 (product dependent) | limited short peaks |
Manufacturers commonly specify maximum continuous temperatures near 1,050 °C for wire-braided types and 650 °C for ropes with glass braid. Products intended for consumer stove doors and wood stoves often carry 1,200 to 1,260 °C ratings in short duty. Verification of manufacturer datasheets is necessary for any critical service condition.
Key physical and thermal properties (representative values)
Below is a compact technical snapshot that engineers consult during selection. Values vary by supplier and product grade; these figures illustrate typical ranges.
| Property | Typical range or behavior |
|---|---|
| Bulk density | 64 to 300 kg/m3 depending on braid and packing |
| Thermal conductivity at 400 °C | 0.06 to 0.15 W/m·K |
| Thermal stability | Up to 1260 °C continuous for wire-reinforced types |
| Specific heat capacity | Low compared with dense refractories |
| Tensile strength | Low in pure fiber rope; improved with wire braid |
| Chemical resistance | Resistant to many acids and oxidizing gases; attacked by hydrofluoric and strong alkalis in high concentration |
Use the manufacturer’s technical data sheet for final design numbers.
Mechanical behavior, limits, and failure modes
Ceramic fiber rope excels at compressible sealing but has limited mechanical load capacity. Typical failure mechanisms include:
-
Compression set: repeated compression and temperature cycling may cause loss of spring-back. Choosing the correct density and braid reduces this.
-
Abrasion and fray: contact with sharp edges or rough grooves will damage fibers; square braid or coated rope resists abrasion better.
-
Chemical attack: hydrofluoric acid, concentrated phosphoric acid, and strong alkalis can weaken the fiber matrix. Avoid exposure when possible.
-
Molten metal contact: many ceramic fiber ropes tolerate occasional contact with molten non-ferrous metals such as aluminum or zinc; prolonged immersion or repeated spatter may degrade rope integrity unless the rope has a specific molten-metal-resistant treatment. Consult product guidance for casting applications.
Typical industrial applications and match to rope type
| Application | Recommended rope construction | Why it fits |
|---|---|---|
| Furnace door and kiln seals | Twisted rope or round braid | Compressible seal that recovers and resists thermal cycling. |
| Boiler expansion joint packing | Square braid or wire-reinforced braid | Higher abrasion resistance and mechanical stability. |
| Foundry door gasket and metal casting seals | Wire-reinforced rope or coated braid | Improved resistance to molten metal spatter and mechanical shock. |
| Pipe insulation and wrapping of hot ducts | Twisted rope or wicking yarn rope | Easy to wrap, fills irregular gaps, insulating performance. |
| Stove and wood burner door jam seals | Twisted rope rated to 1,200 °C | Matches domestic appliance temperature ranges while offering compressibility. |
| Vacuum degassing and high temperature gasketing | Dense braid, sometimes with metal wire | Need gas-tight packing under higher mechanical stress. |
Selecting the correct construction requires matching groove profile, clamp force, surface finish, and the local peak and continuous temperatures.
Selection checklist and specification template
When specifying ceramic fiber rope for a procurement or engineering drawing, include the following items:
-
Continuous use temperature rating in °C.
-
Peak or short-term temperature exposure.
-
Construction type: twisted, square braid, round braid, wire-reinforced.
-
Diameter and tolerance.
-
Core material chemistry: alumina-silicate content or high-alumina grade.
-
Coating or binder requirements to reduce dust.
-
Compliance or regulatory needs for workplace fiber handling.
-
Packaging, spool length, and traceability.
Use the template above when requesting quotations or issuing purchase orders to ensure all vendors quote comparable products.
Cutting, installation and finishing practices
Correct installation preserves rope life and helps maintain seal integrity.
-
Cutting: use a sharp knife, hot knife, or abrasive tool recommended by the supplier. Coated rope often cuts cleaner with a hot knife. Take care to avoid inhaling dust.
-
Sealing grooves: ropes compress into rectangular or round grooves. Fill the groove so the rope is slightly proud; final compression under closure forms the seal. Use correct packing force to avoid over-compression.
-
Anchoring: for high-temperature metal doors and movable joints, wire tie or clip the rope in place before tightening closure hardware. Wire reinforces can also be fixed mechanically.
-
Coating or binder: a refractory coating reduces dust and makes a firmer gasket, helpful for exposed seals. Coatings may change peak temperature tolerance; confirm compatibility.
-
Thermal cycling: expect initial settling in the first few cycles. Inspect and retorque clamps if needed.
Routine visual inspection for fraying, crushing, and contamination is essential. Replace packing when recovery or sealing force drops below required thresholds.
Handling, health and workplace safety
Ceramic fiber products are a non-asbestos replacement for older textile refractories, yet they generate respirable dust during cutting and abrasion. Follow common industrial hygiene best practices:
-
Engineering controls: local exhaust ventilation at cutting stations, enclosed cutting benches.
-
Personal protective equipment: N95 or better respiratory protection during cutting, safety glasses, gloves, and long sleeves to limit skin contact with dust.
-
Hygiene: avoid dry sweeping; use HEPA vacuuming and wet wiping for cleanup to prevent airborne re-suspension.
-
Regulatory: consult local occupational exposure limits and supplier safety data sheets for fiber handling and any respirable crystalline silica content. Keep records of safety training and control measures.
Manufacturers often provide dust-control recommendations and product-specific safe handling guidance. Follow those instructions during installation and maintenance.
Comparative alternatives and cost drivers
| Material | Typical temperature range °C | Strengths | Limitations |
|---|---|---|---|
| Ceramic fiber rope | up to ~1,260 for wire-reinforced | Excellent insulation, low mass, compressible | Low mechanical load capacity, dust during handling |
| Mineral wool rope | ~650 to 1000 depending on grade | Cheaper, good insulation | Higher thermal conductivity, higher density |
| Graphite packing | up to 450 to 650 with coatings | Good for compression under steam or corrosive vapors | Lower peak temp rating, can oxidize at high temps |
| Asbestos rope (historical) | high | Durable under heat | Banned or heavily restricted due to health hazard |
Cost is driven by fiber chemistry, braid density, presence of wire braid, special coatings, and certification requirements. Wire-reinforced and high-alumina products command premium pricing.
Troubleshooting common failures and repair tactics
-
Leak or heat leak at door seam: check groove fill and evenness. Replace rope with correct diameter and re-torque clamps. Use a coated rope for tighter sealing.
-
Excessive dust and fluffing: consider a coated or bound rope, or use a denser braid. Ensure cutting practices minimize free fiber.
-
Frequent compression set: select higher density rope or wire-reinforced construction to reduce set. Check closure load and avoid over-compression that damages fiber structure.
-
Chemical attack signs: identify chemical exposure; change to a rope with compatible chemistry or add protective shielding. Avoid HF and strong alkali contact.
For safety, isolate the system and allow cooling before attempting repairs. Use certified replacement parts where gas tightness matters.
Manufacturer quality signals and specification details to request
When evaluating suppliers, request these items:
-
Technical data sheet listing continuous and short-term temperature limits.
-
Composition declaration and traceable batch number.
-
Recommended installation practices and cutting methods.
-
Safety data sheet with fiber content, handling controls, and disposal guidance.
-
Warranty terms and expected service life under specified duty cycle.
These details reduce ambiguity during procurement and align performance expectations.
Quick technical comparison table for typical rope types
| Metric | Twisted rope | Square braid | Wire-braided rope |
|---|---|---|---|
| Compressibility | High | Moderate | Low to moderate |
| Abrasion resistance | Low | High | High |
| Typical continuous temp | 650 to 1100 °C | 650 to 1260 °C | 1050 to 1260 °C |
| Use case | Light seals, stoves | Industrial seals, expansion joints | Heavy-duty seals, molten metal proximity |
| Cost | Low to medium | Medium | Medium to high |
Refer to vendor datasheets for product-specific figures.
Frequently asked questions
Q1: What is the single best indicator when choosing rope for a high temperature door seal?
A1: Match the continuous operating temperature plus anticipated short peaks to the rope rating. If the application includes mechanical wear, choose a denser braid or wire-reinforcement.
Q2: Can ceramic fiber rope touch molten aluminum?
A2: Ropes tolerate incidental molten aluminum contact in many foundry uses, but prolonged immersion or repeated spatter requires a rope rated for molten metal exposure and likely a protective coating or wire braid. Check supplier guidance for casting applications.
Q3: What cutting method minimizes dust?
A3: A hot knife or a wet-cut method where feasible reduces airborne dust. Use local exhaust ventilation and HEPA vacuuming for cleanup.
Q4: How long does ceramic fiber rope last?
A4: Service life depends on temperature profile, mechanical stress, and chemical exposure. In moderate duty, rope can last many years; in heavy cycling or spatter environments, life may be months. Specify expected duty to get a realistic estimate from suppliers.
Q5: Is ceramic fiber rope safe compared with older asbestos rope?
A5: Ceramic fiber rope is non-asbestos and is generally preferred for safety, but it still requires dust controls and PPE during handling. Follow supplier safety data and workplace regulations.
Q6: Can I reuse removed rope when reassembling a furnace door?
A6: Reuse risks reduced sealing force and unknown compression set. Best practice is to replace with new rope sized to the groove to ensure reliable sealing.
Q7: What temperature rating do wire-reinforced ropes usually provide?
A7: Wire-reinforced ropes commonly offer continuous service near 1,050 °C and short-term tolerance up to around 1,260 °C depending on alloy and fiber grade.
Q8: Which chemicals attack ceramic fiber rope?
A8: Hydrofluoric acid, concentrated phosphoric acid, and strong alkalis can damage the fiber chemistry. Most oxidizing gases and non-ferrous molten metals are tolerated better. Confirm with the manufacturer for specific exposures.
Q9: Is a coated rope better than an uncoated rope?
A9: Coatings reduce dust, give firmer gaskets, and increase abrasion resistance. Coatings can change peak temperature and flexibility, so balance coating benefits against duty requirements.
Q10: What inspection frequency is recommended?
A10: For high-duty industrial furnaces, inspect seals each scheduled shutdown or monthly if heavy cycling occurs. For lower duty, inspect every few months. Look for fraying, crushing, and any discoloration indicating chemical exposure.
Closing notes for engineers and maintenance teams
Ceramic fiber rope offers a high-performance, compact solution for sealing and insulating at extreme temperatures. Proper product selection, careful installation, and controlled handling create energy savings and reduce maintenance downtime. For critical systems, request manufacturer test data for thermal conductivity, compression set, and chemical resistance under your exact duty cycle.
